之前裝過一次 ELK 7.7，相比之下裝 8.7可方便太多了~??

CentOS版本

　　CentOS-8.5.2111-x86_64-dvd1

JAVA
　　ELK會自己使用內置版本的JDK

ElasticSearch

　　8.7.0 下載頁面 Download Elasticsearch | Elastic

Kinbana

　　8.7.0 下載地址 Download Kibana Free | Get Started Now | Elastic

Logstash

　　8.7.0 下載地址 Download Logstash Free | Get Started Now | Elastic

安裝ElasticSearch8

?　　加入資源

rpm --import https://artifacts.elastic.co/GPG-KEY-elasticsearch

　　在/etc/yum.repos.d/位置創建文件elasticsearch.repo

cd /etc/yum.repos.d/

vim elasticsearch.repo

　　輸入如下內容：

[elasticsearch]
name=Elasticsearch repository for 8.x packages
baseurl=https://artifacts.elastic.co/packages/8.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=0
autorefresh=1
type=rpm-md

將鏡像從?mirror.centos.org?更改為?vault.centos.org (yum可用，則跳過)

　　進入到 yum 的 repos 目錄

cd /etc/yum.repos.d/

　　修改 centos 文件內容

sed -i 's/mirrorlist/#mirrorlist/g' /etc/yum.repos.d/CentOS-*
sed -i 's|#baseurl=http://mirror.centos.org|baseurl=http://vault.centos.org|g' /etc/yum.repos.d/CentOS-*

　　生成緩存更新

yum makecache

　　運行 yum update，并且重新安裝 vim

yum update -y
yum -y install vim

?　　執行 yum 命令完成 es 安裝

yum install --enablerepo=elasticsearch elasticsearch

　　安裝完記得保存如下信息，便于后續使用

Authentication and authorization are enabled.
TLS for the transport and HTTP layers is enabled and configured.

The generated password for the elastic built-in superuser is : xxxxxxxxx

If this node should join an existing cluster, you can reconfigure this with
'/usr/share/elasticsearch/bin/elasticsearch-reconfigure-node --enrollment-token <token-here>'
after creating an enrollment token on your existing cluster.

You can complete the following actions at any time:

Reset the password of the elastic built-in superuser with
'/usr/share/elasticsearch/bin/elasticsearch-reset-password -u elastic'.

Generate an enrollment token for Kibana instances with
 '/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana'.

Generate an enrollment token for Elasticsearch nodes with
'/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s node'.

添加用戶和用戶組 es 并未用戶組提供文件夾權限

groupadd es
useradd es -g es -p password

chown es:es -R /usr/share/elasticsearch
chown es:es -R /etc/elasticsearch
chown es:es -R /var/lib/elasticsearch
chown es:es -R /var/log/elasticsearch

chown es:es -R /var/

chmod 777 /etc/elasticsearch
chmod 777 /usr/share/elasticsearch/
chmod 777 /etc/sysconfig/elasticsearch

?編輯 elasticsearch.yml 配置文件

 cd /etc/elasticsearch
 vim elasticsearch.yml

　　配置如下：

network.host: 0.0.0.0
http.port: 9200
xpack.security.enabled: false

　　使用 es 賬號啟動 ElasticSearch

cd /usr/share/elasticsearch/bin/
su es
bin/elasticsearch -d

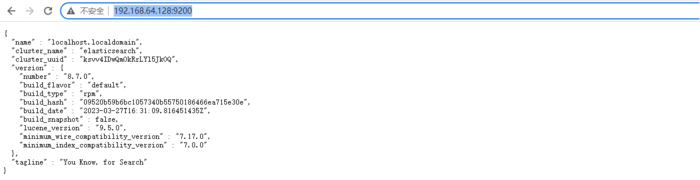

關閉防火墻或者開放9200端口，即可通過 IP:9200 訪問

# 查看防火墻狀態
systemctl status firewalld.service

# 關閉防火墻
systemctl stop firewalld.service

?　　如果遇到安全提示則選擇繼續訪問，并輸入用戶名密碼這個用到的用戶名密碼是安裝Es后我們保存的那個哦

CentOS 8 部署 ELK 8.7真的是方便呀

安裝 Kibana

　　在 /etc/yum.repos.d/ 位置創建文件 kibana.repo

cd /etc/yum.repos.d/

vim kibana.repo

　　輸入如下內容

[kibana-8.x]
name=Kibana repository for 8.x packages
baseurl=https://artifacts.elastic.co/packages/8.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md

　　執行yum命令完成安裝

yum install kibana

　　修改 kibana 配置文件

vim /etc/kibana/kibana.yml

　　增加如下內容：

server.host: "0.0.0.0"
server.post: 5601

　　以root后臺啟動服務

nohup /usr/share/kibana/bin/kibana --allow-root &

　　在ES安裝目錄執行如下代碼獲取 token (本文 8.7 版本不需要)

/usr/share/elasticsearch/bin/elasticsearch-create-enrollment-token -s kibana

?　　關閉防火墻或者開啟5601端口，并使用瀏覽器訪問 IP:5601

安裝 Logstash

　　在 /etc/yum.repos.d/ 位置創建文件 logstash.repo

cd /etc/yum.repos.d/
vim logstash.repo

　　輸入如下內容：

[logstash-8.x]
name=Elastic repository for 8.x packages
baseurl=https://artifacts.elastic.co/packages/8.x/yum
gpgcheck=1
gpgkey=https://artifacts.elastic.co/GPG-KEY-elasticsearch
enabled=1
autorefresh=1
type=rpm-md

　　執行yum命令完成安裝

yum install logstash

　　安裝完成后的啟動目錄

/usr/share/logstash/bin/logstash

　　在 /etc/logstash/ 目錄下創建 logstash.conf 配置文件

cd /etc/logstash/
vim logstash.conf

　　輸入如下內容，以搜集 Nginx 的日志

#---------------------------------------------------------------- nginx-----------------------------------------------------------------------
input {
   file {
        type => "nginx-error-log"
        path => "/usr/local/nginx/logs/error.log"
    }
    file {
        type => "nginx-access-log"
        path => "/usr/local/nginx/logs/access.log"
        codec => json
    }
}

filter {
    if [type] =~ "nginx-error-log"
    {
        grok {
            match => {
                "message" => "(?<datetime>\d{4}/\d{2}/\d{2} \d{2}:\d{2}:\d{2}) \[(?<errtype>\w+)\] \S+: \*\d+ (?<errmsg>[^,]+), (?<errinfo>.*$)"
            }
        }

        mutate {
            rename => {
                "message" => "z_message"
                "host" => "fromhost"
            }
        }
    } else if [type] =~ "nginx-access-log"  {
        mutate {
            split => {"upstremtime" => ","}
        }
        mutate {
            convert => { "upstremtime" => "float"}
        }
    }

    if [errinfo]
    {
            ruby {
                code => "
                        new_event = LogStash::Event.new(Hash[event.get('errinfo').split(', ').map{ |l| l.split(': ')  }])
                        new_event.remove('@timestamp')
                        event.append(new_event)
                "
            }

            grok {
                match => {
                    "request" => '"%{WORD:verb} %{URIPATHPARAM:urlpathparam}?(?: HTTP/%{NUMBER:httpversion})"'
                }
                patterns_dir => ["/home/data/logstash/patterns/"]
                remove_field => [ "errinfo","request" ]
            }
     }
}

output {
    #elasticsearch { host => localhost }
    stdout { codec => rubydebug }
    if [type] =~ "nginx-error-log" {
        elasticsearch {
            hosts => ["http://ES的域名或者IP地址"]
            index => "logstash-nginx-error-log-%{+YYYY.MM.dd}"
            document_type => "data"
            user => "es用戶名"
            password => "es密碼"
        }
    }else if [type] =~ "nginx-access-log"  {
          elasticsearch {
            hosts => ["http://ES的域名或者IP地址"]
            index => "logstash-nginx-access-log-%{+YYYY.MM.dd}"
            document_type => "data"
            user => "es用戶名"
            password => "es密碼"
        }
    }
}

　　指定配置文件，啟動 logstash

/usr/share/logstash/bin/logstash -f /etc/logstash/logstash.conf

格式化 Nginx 日志

　　進入 nginx 配置文件（以各自的文件目錄、文件名為準）

cd /usr/local/nginx/conf/
vim nginx.conf

　　在 http 里輸入如下內容：

    log_format main '{"@timestamp":"$time_iso8601",'
        '"host":"$server_addr",'
        ' "clientip" : "$remote_addr",'
        ' "size" : "$body_bytes_sent" ,'
        '"respnsetime":"$request_time",'
        '"upstremtime":"$upstream_response_time",'
        '"upstremhost":"$upstream_addr",'
        '"httphost":"$host",'
        '"referer":"$http_referer",'
        '"xff":"$http_x_forwarded_for",'
        '"agent":"$http_user_agent",'
        '"clientip":"$remote_addr",'
        '"request":"$request",'
        '"uri":"$uri",'
        '"status":"$status"}';

    access_log /usr/local/nginx/logs/access.log main;
    error_log /usr/local/nginx/logs/error.log error;
