使用myeclipse搭建maven項目
準備工作
安裝maven
官網下載安裝（http://maven.apache.org/）
配置環境變量
配置完后，使用命令行輸入mvn -version查看是否配置成功，出現以下界面表示配置成功。
2. 在myeclipse中配置maven
打開myeclipse2015————點擊菜單欄window———選項欄preference ，搜索maven,進入installations,點擊add引入安裝的maven。
進入user setting,設置global setting,選中安裝的maven的settings.xml配置文件（以上步驟已經完成maven配置）
3. 創建項目(檢測是否配置成功，這里創建的是web項目)
點擊項目右鍵->run as->maven install將依賴install至本地maven庫，有可能會報：
-dmaven.multimoduleprojectdirectorysystem propery is not set. check $m2_home environment variable and mvn scriptmatch.，
表示jdk版本和maven有沖突，更改一下jdk版本，并且加上-dmaven.multimoduleprojectdirectory=$m2_home即可；

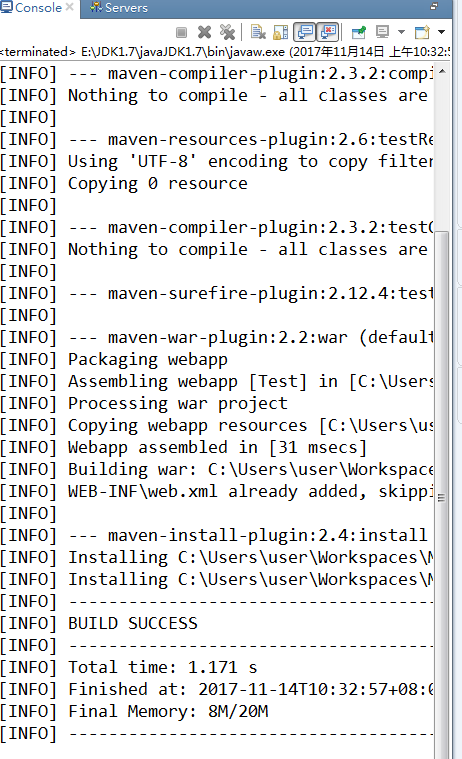

如運行過程中控制臺如下圖所示,表示成功。
在maven項目中搭建spring+springmvc+mybatis
修改pom.xml添加對應的包依賴
java" id="highlighter_554311">
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
|
<!-- servlet --> <dependency> <groupid>javax.servlet</groupid> <artifactid>javax.servlet-api</artifactid> <version>3.0.1</version> <scope>compile</scope> </dependency> <dependency> <groupid>jstl</groupid> <artifactid>jstl</artifactid> <version>1.2</version> </dependency> <!-- 數據庫連接池 --> <dependency> <groupid>c3p0</groupid> <artifactid>c3p0</artifactid> <version>0.9.1</version> </dependency> <!-- 阿里巴巴druid連接池 --> <dependency> <groupid>com.alibaba</groupid> <artifactid>druid</artifactid> <version>1.0.25</version> <exclusions> <exclusion> <groupid>com.alibaba</groupid> <artifactid>jconsole</artifactid> </exclusion> <exclusion> <groupid>com.alibaba</groupid> <artifactid>tools</artifactid> </exclusion> </exclusions> </dependency> <!-- 1、先添加spring相關的包 --> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-core</artifactid> <version>4.1.7.release</version></dependency><dependency> <groupid>org.springframework</groupid> <artifactid>spring-beans</artifactid> <version>4.1.7.release</version></dependency><dependency> <groupid>org.springframework</groupid> <artifactid>spring-tx</artifactid> <version>4.1.7.release</version> </dependency><dependency> <groupid>org.springframework</groupid> <artifactid>spring-context</artifactid> <version>4.1.7.release</version></dependency><dependency> <groupid>org.springframework</groupid> <artifactid>spring-context-support</artifactid> <version>4.1.7.release</version></dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-web</artifactid> <version>4.1.7.release</version></dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-webmvc</artifactid> <version>4.1.7.release</version></dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-aop</artifactid> <version>4.1.7.release</version></dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-aspects</artifactid> <version>4.1.7.release</version></dependency> <dependency> <groupid>org.springframework</groupid> <artifactid>spring-jdbc</artifactid> <version>4.1.7.release</version></dependency> <!--aspectjweaver包:面向切面要用到的包 --> <dependency> <groupid>org.aspectj</groupid> <artifactid>aspectjweaver</artifactid> <version>1.8.5</version> </dependency> <!--4、單元測試相關的包 --> <dependency> <groupid>junit</groupid> <artifactid>junit</artifactid> <version>4.12</version> </dependency> <!-- 2、mybatis --> <dependency> <groupid>org.mybatis</groupid> <artifactid>mybatis</artifactid> <version>3.4.1</version> </dependency> <!-- 日志 --> <dependency> <groupid>log4j</groupid> <artifactid>log4j</artifactid> <version>1.2.17</version> </dependency> <!-- 整合插件包 --> <dependency> <groupid>org.mybatis</groupid> <artifactid>mybatis-spring</artifactid> <version>1.3.0</version> </dependency> <!-- mysql驅動 --> <dependency> <groupid>mysql</groupid> <artifactid>mysql-connector-java</artifactid> <version>5.1.38</version> </dependency> <dependency> <groupid>com.mchange</groupid> <artifactid>mchange-commons-java</artifactid> <version>0.2.10</version> </dependency> <!-- 工具包 --> <dependency> <groupid>commons-codec</groupid> <artifactid>commons-codec</artifactid> <version>1.10</version> </dependency> <!-- xml文件解析 --> <dependency> <groupid>dom4j</groupid> <artifactid>dom4j</artifactid> <version>1.6.1</version> </dependency> <dependency> <groupid>com.thoughtworks.xstream</groupid> <artifactid>xstream</artifactid> <version>1.3.1</version> </dependency> <!-- json-lib --> <dependency> <groupid>net.sf.json-lib</groupid> <artifactid>json-lib</artifactid> <version>2.4</version> <classifier>jdk15</classifier> </dependency> <dependency> <groupid>xom</groupid> <artifactid>xom</artifactid> <version>1.2.5</version> </dependency> <!-- httpclient --> <dependency> <groupid>org.apache.httpcomponents</groupid> <artifactid>httpclient</artifactid> <version>4.2.5</version> </dependency> <!-- 分頁組件 --> <dependency> <groupid>com.github.pagehelper</groupid> <artifactid>pagehelper</artifactid> <version>4.0.0</version> </dependency> <!-- 通用mapper --> <dependency> <groupid>tk.mybatis</groupid> <artifactid>mapper</artifactid> <version>3.3.8</version> </dependency> <dependency> <groupid>commons-httpclient</groupid> <artifactid>commons-httpclient</artifactid> <version>3.1</version> </dependency> <dependency> <groupid>org.jdom</groupid> <artifactid>jdom</artifactid> <version>1.1.3</version> </dependency> |
修改web.xml,配置驅動及過濾器和加載spring配置文件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
|
<welcome-file-list> <welcome-file>index.html</welcome-file> <welcome-file>index.htm</welcome-file> <welcome-file>index.jsp</welcome-file> <welcome-file>default.html</welcome-file> <welcome-file>default.htm</welcome-file> <welcome-file>default.jsp</welcome-file> </welcome-file-list> <listener> <listener-class>org.springframework.web.context.contextloaderlistener</listener-class> </listener> <!-- 加入spring --> <context-param> <param-name>contextconfiglocation</param-name> <param-value>classpath:applicationcontext*.xml</param-value> </context-param> <!-- 配置dispatchcerservlet --> <servlet> <servlet-name>springdispatcherservlet</servlet-name> <servlet-class>org.springframework.web.servlet.dispatcherservlet</servlet-class> <!-- 配置spring mvc下的配置文件的位置和名稱 --> <init-param> <param-name>contextconfiglocation</param-name> <param-value>classpath:springmvc.xml</param-value> </init-param> <load-on-startup>1</load-on-startup> </servlet> <servlet-mapping> <servlet-name>springdispatcherservlet</servlet-name> <url-pattern>/</url-pattern> </servlet-mapping> |
創建并配置applicationcontext.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
|
<?xml version="1.0" encoding="utf-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:tx="http://www.springframework.org/schema/tx" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:jaxws="http://cxf.apache.org/jaxws" xsi:schemalocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.1.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd http://cxf.apache.org/jaxws http://cxf.apache.org/schemas/jaxws.xsd http://www.springframework.org/schema/tx http://www.springframework.org/schema/tx/spring-tx.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd"> <!-- 掃描 --> <context:component-scan base-package="cn.ft.mapper,cn.ft.service.impl,cn.ft.service.rest.impl"></context:component-scan> <!-- 導入db.properties --> <context:property-placeholder location="classpath:db.properties" /> <!-- 先配置數據源：c3p0 --> <bean id="datasource" class="com.mchange.v2.c3p0.combopooleddatasource"> <property name="driverclass" value="${driverclassname}"></property> <property name="jdbcurl" value="${jdbc_url}"></property> <property name="user" value="${jdbc_username}"></property> <property name="password" value="${jdbc_password}"></property> <property name="testconnectiononcheckin" value="false"/> <property name="testconnectiononcheckout" value="true"/> </bean> <bean id="sqlsessionfactory" class="org.mybatis.spring.sqlsessionfactorybean"> <property name="datasource" ref="datasource"></property> <!-- 加載mybatis.cfg.xml文件 --> <property name="configlocation" value="classpath:mybatis-config.xml"></property> <!-- 自動掃描需要定義類別名的包，將包內的java類的類名作為類別名 --> <property name="typealiasespackage" value="cn.ft.model"></property> </bean> <!-- 自動掃描所有的mapper接口與文件 --> <bean class="org.mybatis.spring.mapper.mapperscannerconfigurer"> <property name="basepackage" value="cn.ft.mapper"></property> </bean> <!-- 事務的配置 --> <bean id="txmanager" class="org.springframework.jdbc.datasource.datasourcetransactionmanager"> <property name="datasource" ref="datasource" /> </bean> <!-- 攔截器方式配置事物 --> <tx:advice id="transactionadvice" transaction-manager="txmanager"> <tx:attributes> <!-- 以如下關鍵字開頭的方法使用事物 --> <tx:method name="add*" propagation="required" /> <tx:method name="save*" propagation="required" /> <tx:method name="update*" propagation="required" /> <tx:method name="modify*" propagation="required" /> <tx:method name="edit*" propagation="required" /> <tx:method name="delete*" propagation="required" /> <tx:method name="remove*" propagation="required" /> <tx:method name="buyfood" propagation="required" /> <tx:method name="order" propagation="required" /> <!-- 以如下關鍵字開頭的方法不使用事物 --> <tx:method name="get*" read-only="true" /> <tx:method name="find*" read-only="true" /> <tx:method name="load*" read-only="true" /> <tx:method name="query*" read-only="true" /> <!-- 其他方法不使用事物 --> <tx:method name="*" propagation="supports" /> </tx:attributes> </tx:advice> <!-- 切面，將事物用在哪些對象上 --> <aop:config> <aop:pointcut id="transactionpointcut" expression="execution(* cn.ft.service.impl.*impl.*(..))" /> <aop:advisor pointcut-ref="transactionpointcut" advice-ref="transactionadvice" /> </aop:config></beans> |
創建并配置springmvc.xml
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
|
<?xml version="1.0" encoding="utf-8"?><beans xmlns="http://www.springframework.org/schema/beans" xmlns:xsi="http://www.w3.org/2001/xmlschema-instance" xmlns:p="http://www.springframework.org/schema/p" xmlns:context="http://www.springframework.org/schema/context" xmlns:aop="http://www.springframework.org/schema/aop" xmlns:mvc="http://www.springframework.org/schema/mvc" xsi:schemalocation="http://www.springframework.org/schema/aop http://www.springframework.org/schema/aop/spring-aop-4.3.xsd http://www.springframework.org/schema/mvc http://www.springframework.org/schema/mvc/spring-mvc-4.3.xsd http://www.springframework.org/schema/beans http://www.springframework.org/schema/beans/spring-beans-4.1.xsd http://www.springframework.org/schema/context http://www.springframework.org/schema/context/spring-context-4.1.xsd"> <!-- 掃描 --> <context:component-scan base-package="cn.ft.controller"></context:component-scan> <!-- 視圖解析器 --> <bean class="org.springframework.web.servlet.view.internalresourceviewresolver"> <property name="prefix" value="/"></property> <property name="suffix" value=".jsp"></property> </bean> <bean class="org.springframework.web.servlet.handler.simplemappingexceptionresolver"> <property name="exceptionmappings"> <props> <prop key="org.apache.shiro.authz.unauthorizedexception"> /refuse </prop> </props> </property> </bean> <mvc:annotation-driven> <mvc:message-converters> <bean class="org.springframework.http.converter.stringhttpmessageconverter"> <property name="supportedmediatypes"> <list> <value>application/json;charset=utf-8</value> </list> </property> </bean> </mvc:message-converters> </mvc:annotation-driven> <!-- ajax中文亂碼暫時無效<bean class="org.springframework.web.servlet.mvc.annotation.annotationmethodhandleradapter"> <property name="messageconverters"> <list> <bean class="org.springframework.http.converter.stringhttpmessageconverter"> <property name="supportedmediatypes"> <list> <value>text/html;charset=utf-8</value> </list> </property> </bean> </list> </property> </bean> --></beans> |
配置數據源db.properties
|
1
2
3
4
5
6
|
driverclassname=com.mysql.jdbc.drivervalidationquery=select 1jdbc_url=jdbc\:mysql\://localhost\:3306/ft?useunicode\=true&characterencoding\=utf-8&zerodatetimebehavior\=converttonulljdbc_username=rootjdbc_password=8888 |
配置mybatis-config.xm
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
|
<?xml version="1.0" encoding="utf-8" ?><!doctype configuration public "-//mybatis.org//dtd config 3.0//en" "http://mybatis.org/dtd/mybatis-3-config.dtd"><configuration> <settings> <setting name="cacheenabled" value="true"/> </settings> <typealiases> <!-- <typealias type="cn.hd.model.userbean" alias="userbean"/> --> <!-- 批量設置別名:別名就是類名(把第一個字母改小寫) --> <package name="cn.ft.model"/> </typealiases> </configuration> |
配置log4j.properties
|
1
2
3
4
5
6
7
8
9
10
|
log4j.rootcategory=debug, stdout , r log4j.appender.stdout=org.apache.log4j.consoleappenderlog4j.appender.stdout.layout=org.apache.log4j.patternlayoutlog4j.appender.stdout.layout.conversionpattern=[qc] %p [%t] %c.%m(%l) | %m%n log4j.appender.r=org.apache.log4j.dailyrollingfileappenderlog4j.appender.r.file=d\:\\tomcat 5.5\\logs\\qc.loglog4j.appender.r.layout=org.apache.log4j.patternlayoutlog4j.appender.r.layout.conversionpattern=%d-[ts] %p %t %c - %m%n |
以上這篇java整合ssm框架的圖文教程就是小編分享給大家的全部內容了，希望能給大家一個參考，也希望大家多多支持服務器之家。
