最近項目中的活動面板要做來回滾動卡牌預覽效果，感覺自己來寫的話，也能寫，但是可能會比較耗時，看到github上有開源的項目，于是就借用了，github的資源地址，感謝作者的分享。
本篇博客旨在告訴大家如何利用這個插件。
插件的核心在于工程中的6個腳本，以下是六個腳本的源碼：
dragenhanceview.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
using unityengine;using system.collections;using unityengine.ui;using unityengine.eventsystems; public class uguienhanceitem : enhanceitem{ private button ubutton; private image image; protected override void onstart() { image = getcomponent<image>(); ubutton = getcomponent<button>(); ubutton.onclick.addlistener(onclickuguibutton); } private void onclickuguibutton() { onclickenhanceitem(); } // set the item "depth" 2d or 3d protected override void setitemdepth(float depthcurvevalue, int depthfactor, float itemcount) { int newdepth = (int)(depthcurvevalue * itemcount); this.transform.setsiblingindex(newdepth); } public override void setselectstate(bool iscenter) { if (image == null) image = getcomponent<image>(); image.color = iscenter ? color.white : color.gray; }} |
enhancescrollviewdragcontroller.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
|
using unityengine;using system.collections; public class enhancescrollviewdragcontroller : monobehaviour{ private vector2 lastposition = vector2.zero; private vector2 cachedposition = vector2.zero; private gameobject dragtarget; private camera targetcamera; private int raycastmask = 0; private bool dragstart = false; public void settargetcameraandmask(camera camera, int mask) { this.targetcamera = camera; this.raycastmask = mask; } void update() { if (this.targetcamera == null) return;#if unity_editor processmouseinput();#elif unity_ios || unity_android processtouchinput();#endif } /// <summary> /// process mouse input /// </summary> private void processmouseinput() { if (input.getmousebuttondown(0)) { if (targetcamera == null) return; dragtarget = raycast(this.targetcamera, input.mouseposition); lastposition.x = input.mouseposition.x; lastposition.y = input.mouseposition.y; } if (input.getmousebutton(0)) { if (dragtarget == null) return; cachedposition.x = input.mouseposition.x; cachedposition.y = input.mouseposition.y; vector2 delta = cachedposition - lastposition; if (!dragstart && delta.sqrmagnitude != 0f) dragstart = true; if (dragstart) { // notify target dragtarget.sendmessage("onenhanceviewdrag", delta, sendmessageoptions.dontrequirereceiver); } lastposition = cachedposition; } if (input.getmousebuttonup(0)) { if (dragtarget != null && dragstart) { dragtarget.sendmessage("onenhaneviewdragend", sendmessageoptions.dontrequirereceiver); } dragtarget = null; dragstart = false; } } /// <summary> /// process touch input /// </summary> private void processtouchinput() { if (input.touchcount > 0) { touch touch = input.gettouch(0); if (touch.phase == touchphase.began) { if (targetcamera == null) return; dragtarget = raycast(this.targetcamera, input.mouseposition); } else if (touch.phase == touchphase.moved) { if (dragtarget == null) return; if (!dragstart && touch.deltaposition.sqrmagnitude != 0f) { dragstart = true; } if (dragstart) { // notify target dragtarget.sendmessage("onenhanceviewdrag", touch.deltaposition, sendmessageoptions.dontrequirereceiver); } } else if (touch.phase == touchphase.ended) { if (dragtarget != null && dragstart) { dragtarget.sendmessage("onenhaneviewdragend", sendmessageoptions.dontrequirereceiver); } dragtarget = null; dragstart = false; } } } public gameobject raycast(camera cam, vector3 inpos) { vector3 pos = cam.screentoviewportpoint(inpos); if (float.isnan(pos.x) || float.isnan(pos.y)) return null; if (pos.x < 0f || pos.x > 1f || pos.y < 0f || pos.y > 1f) return null; ray ray = cam.screenpointtoray(inpos); float dis = 100f; raycasthit[] hits = physics.raycastall(ray, dis, raycastmask); if (hits.length > 0) { for (int i = 0; i < hits.length; i++) { gameobject go = hits[i].collider.gameobject; dragenhanceview dragview = go.getcomponent<dragenhanceview>(); if (dragview == null) continue; else { // just return current hover object our drag target return go; } } } return null; }} |
enhanceitem.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
|
using unityengine;using system.collections; public class enhanceitem : monobehaviour{ // start index private int curveoffsetindex = 0; public int curveoffsetindex { get { return this.curveoffsetindex; } set { this.curveoffsetindex = value; } } // runtime real index(be calculated in runtime) private int currealindex = 0; public int realindex { get { return this.currealindex; } set { this.currealindex = value; } } // curve center offset private float dcurvecenteroffset = 0.0f; public float centeroffset { get { return this.dcurvecenteroffset; } set { dcurvecenteroffset = value; } } private transform mtrs; void awake() { mtrs = this.transform; onawake(); } void start() { onstart(); } // update item's status // 1. position // 2. scale // 3. "depth" is 2d or z position in 3d to set the front and back item public void updatescrollviewitems( float xvalue, float depthcurvevalue, int depthfactor, float itemcount, float yvalue, float scalevalue) { vector3 targetpos = vector3.one; vector3 targetscale = vector3.one; // position targetpos.x = xvalue; targetpos.y = yvalue; mtrs.localposition = targetpos; // set the "depth" of item // targetpos.z = depthvalue; setitemdepth(depthcurvevalue, depthfactor, itemcount); // scale targetscale.x = targetscale.y = scalevalue; mtrs.localscale = targetscale; } protected virtual void onclickenhanceitem() { enhancescrollview.getinstance.sethorizontaltargetitemindex(this); } protected virtual void onstart() { } protected virtual void onawake() { } protected virtual void setitemdepth(float depthcurvevalue, int depthfactor, float itemcount) { } // set the item center state public virtual void setselectstate(bool iscenter) { }} |
enhancescrollview.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
|
using unityengine;using system.collections;using system.collections.generic; public class enhancescrollview : monobehaviour{ public enum inputsystemtype { nguiandworldinput, // use enhancescrollviewdragcontroller.cs to get the input(keyboard and touch) uguiinput, // use udragenhanceview for each item to get drag event } // input system type(ngui or 3d world, ugui) public inputsystemtype inputtype = inputsystemtype.nguiandworldinput; // control the item's scale curve public animationcurve scalecurve; // control the position curve public animationcurve positioncurve; // control the "depth"'s curve(in 3d version just the z value, in 2d ui you can use the depth(ngui)) // note: // 1. in ngui set the widget's depth may cause performance problem // 2. if you use 3d ui just set the item's z position public animationcurve depthcurve = new animationcurve(new keyframe(0, 0), new keyframe(0.5f, 1), new keyframe(1, 0)); // the start center index [tooltip("the start center index")] public int startcenterindex = 0; // offset width between item public float cellwidth = 10f; private float totalhorizontalwidth = 500.0f; // vertical fixed position value public float yfixedpositionvalue = 46.0f; // lerp duration public float lerpduration = 0.2f; private float mcurrentduration = 0.0f; private int mcenterindex = 0; public bool enablelerptween = true; // center and precentered item private enhanceitem curcenteritem; private enhanceitem precenteritem; // if we can change the target item private bool canchangeitem = true; private float dfactor = 0.2f; // originhorizontalvalue lerp to horizontaltargetvalue private float originhorizontalvalue = 0.1f; public float curhorizontalvalue = 0.5f; // "depth" factor (2d widget depth or 3d z value) private int depthfactor = 5; // drag enhance scroll view [tooltip("camera for drag ray cast")] public camera sourcecamera; private enhancescrollviewdragcontroller dragcontroller; public void enabledrag(bool isenabled) { if (isenabled) { if (inputtype == inputsystemtype.nguiandworldinput) { if (sourcecamera == null) { debug.logerror("## source camera for drag scroll view is null ##"); return; } if (dragcontroller == null) dragcontroller = gameobject.addcomponent<enhancescrollviewdragcontroller>(); dragcontroller.enabled = true; // set the camera and mask dragcontroller.settargetcameraandmask(sourcecamera, (1 << layermask.nametolayer("ui"))); } } else { if (dragcontroller != null) dragcontroller.enabled = false; } } // targets enhance item in scroll view public list<enhanceitem> listenhanceitems; // sort to get right index private list<enhanceitem> listsorteditems = new list<enhanceitem>(); private static enhancescrollview instance; public static enhancescrollview getinstance { get { return instance; } } void awake() { instance = this; } void start() { canchangeitem = true; int count = listenhanceitems.count; dfactor = (mathf.roundtoint((1f / count) * 10000f)) * 0.0001f; mcenterindex = count / 2; if (count % 2 == 0) mcenterindex = count / 2 - 1; int index = 0; for (int i = count - 1; i >= 0; i--) { listenhanceitems[i].curveoffsetindex = i; listenhanceitems[i].centeroffset = dfactor * (mcenterindex - index); listenhanceitems[i].setselectstate(false); gameobject obj = listenhanceitems[i].gameobject; if (inputtype == inputsystemtype.nguiandworldinput) { dragenhanceview script = obj.getcomponent<dragenhanceview>(); if (script != null) script.setscrollview(this); } else { udragenhanceview script = obj.getcomponent<udragenhanceview>(); if (script != null) script.setscrollview(this); } index++; } // set the center item with startcenterindex if (startcenterindex < 0 || startcenterindex >= count) { debug.logerror("## startcenterindex < 0 || startcenterindex >= listenhanceitems.count out of index ##"); startcenterindex = mcenterindex; } // sorted items listsorteditems = new list<enhanceitem>(listenhanceitems.toarray()); totalhorizontalwidth = cellwidth * count; curcenteritem = listenhanceitems[startcenterindex]; curhorizontalvalue = 0.5f - curcenteritem.centeroffset; lerptweentotarget(0f, curhorizontalvalue, false); // // enable the drag actions // enabledrag(true); } private void lerptweentotarget(float originvalue, float targetvalue, bool needtween = false) { if (!needtween) { sortenhanceitem(); originhorizontalvalue = targetvalue; updateenhancescrollview(targetvalue); this.ontweenover(); } else { originhorizontalvalue = originvalue; curhorizontalvalue = targetvalue; mcurrentduration = 0.0f; } enablelerptween = needtween; } public void disablelerptween() { this.enablelerptween = false; } /// /// update enhanceitem state with curve ftime value /// public void updateenhancescrollview(float fvalue) { for (int i = 0; i < listenhanceitems.count; i++) { enhanceitem itemscript = listenhanceitems[i]; float xvalue = getxposvalue(fvalue, itemscript.centeroffset); float scalevalue = getscalevalue(fvalue, itemscript.centeroffset); float depthcurvevalue = depthcurve.evaluate(fvalue + itemscript.centeroffset); itemscript.updatescrollviewitems(xvalue, depthcurvevalue, depthfactor, listenhanceitems.count, yfixedpositionvalue, scalevalue); } } void update() { if (enablelerptween) tweenviewtotarget(); } private void tweenviewtotarget() { mcurrentduration += time.deltatime; if (mcurrentduration > lerpduration) mcurrentduration = lerpduration; float percent = mcurrentduration / lerpduration; float value = mathf.lerp(originhorizontalvalue, curhorizontalvalue, percent); updateenhancescrollview(value); if (mcurrentduration >= lerpduration) { canchangeitem = true; enablelerptween = false; ontweenover(); } } private void ontweenover() { if (precenteritem != null) precenteritem.setselectstate(false); if (curcenteritem != null) curcenteritem.setselectstate(true); } // get the evaluate value to set item's scale private float getscalevalue(float slidervalue, float added) { float scalevalue = scalecurve.evaluate(slidervalue + added); return scalevalue; } // get the x value set the item's position private float getxposvalue(float slidervalue, float added) { float evaluatevalue = positioncurve.evaluate(slidervalue + added) * totalhorizontalwidth; return evaluatevalue; } private int getmovecurvefactorcount(enhanceitem precenteritem, enhanceitem newcenteritem) { sortenhanceitem(); int factorcount = mathf.abs(newcenteritem.realindex) - mathf.abs(precenteritem.realindex); return mathf.abs(factorcount); } // sort item with x so we can know how much distance we need to move the timeline(curve time line) static public int sortposition(enhanceitem a, enhanceitem b) { return a.transform.localposition.x.compareto(b.transform.localposition.x); } private void sortenhanceitem() { listsorteditems.sort(sortposition); for (int i = listsorteditems.count - 1; i >= 0; i--) listsorteditems[i].realindex = i; } public void sethorizontaltargetitemindex(enhanceitem selectitem) { if (!canchangeitem) return; if (curcenteritem == selectitem) return; canchangeitem = false; precenteritem = curcenteritem; curcenteritem = selectitem; // calculate the direction of moving float centerxvalue = positioncurve.evaluate(0.5f) * totalhorizontalwidth; bool isright = false; if (selectitem.transform.localposition.x > centerxvalue) isright = true; // calculate the offset * dfactor int moveindexcount = getmovecurvefactorcount(precenteritem, selectitem); float dvalue = 0.0f; if (isright) { dvalue = -dfactor * moveindexcount; } else { dvalue = dfactor * moveindexcount; } float originvalue = curhorizontalvalue; lerptweentotarget(originvalue, curhorizontalvalue + dvalue, true); } // click the right button to select the next item. public void onbtnrightclick() { if (!canchangeitem) return; int targetindex = curcenteritem.curveoffsetindex + 1; if (targetindex > listenhanceitems.count - 1) targetindex = 0; sethorizontaltargetitemindex(listenhanceitems[targetindex]); } // click the left button the select next next item. public void onbtnleftclick() { if (!canchangeitem) return; int targetindex = curcenteritem.curveoffsetindex - 1; if (targetindex < 0) targetindex = listenhanceitems.count - 1; sethorizontaltargetitemindex(listenhanceitems[targetindex]); } public float factor = 0.001f; // on drag move public void ondragenhanceviewmove(vector2 delta) { // in developing if (mathf.abs(delta.x) > 0.0f) { curhorizontalvalue += delta.x * factor; lerptweentotarget(0.0f, curhorizontalvalue, false); } } // on drag end public void ondragenhanceviewend() { // find closed item to be centered int closestindex = 0; float value = (curhorizontalvalue - (int)curhorizontalvalue); float min = float.maxvalue; float tmp = 0.5f * (curhorizontalvalue < 0 ? -1 : 1); for (int i = 0; i < listenhanceitems.count; i++) { float dis = mathf.abs(mathf.abs(value) - mathf.abs((tmp - listenhanceitems[i].centeroffset))); if (dis < min) { closestindex = i; min = dis; } } originhorizontalvalue = curhorizontalvalue; float target = ((int)curhorizontalvalue + (tmp - listenhanceitems[closestindex].centeroffset)); precenteritem = curcenteritem; curcenteritem = listenhanceitems[closestindex]; lerptweentotarget(originhorizontalvalue, target, true); canchangeitem = false; }} |
nguienhanceitem.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
|
using unityengine;using system.collections; /// <summary>/// ngui enhance item example/// </summary>public class nguienhanceitem : enhanceitem{ private uitexture mtexture; protected override void onawake() { this.mtexture = getcomponent<uitexture>(); uieventlistener.get(this.gameobject).onclick = onclicknguiitem; } private void onclicknguiitem(gameobject obj) { this.onclickenhanceitem(); } // set the item "depth" 2d or 3d protected override void setitemdepth(float depthcurvevalue, int depthfactor, float itemcount) { if (mtexture.depth != (int)mathf.abs(depthcurvevalue * depthfactor)) mtexture.depth = (int)mathf.abs(depthcurvevalue * depthfactor); } // item is centered public override void setselectstate(bool iscenter) { if (mtexture == null) mtexture = this.getcomponent<uitexture>(); if (mtexture != null) mtexture.color = iscenter ? color.white : color.gray; } protected override void onclickenhanceitem() { // item was clicked base.onclickenhanceitem(); }} |
uguienhanceitem.cs
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
|
using unityengine;using system.collections;using unityengine.ui;using unityengine.eventsystems; public class uguienhanceitem : enhanceitem{ private button ubutton; private image image; protected override void onstart() { image = getcomponent<image>(); ubutton = getcomponent<button>(); ubutton.onclick.addlistener(onclickuguibutton); } private void onclickuguibutton() { onclickenhanceitem(); } // set the item "depth" 2d or 3d protected override void setitemdepth(float depthcurvevalue, int depthfactor, float itemcount) { int newdepth = (int)(depthcurvevalue * itemcount); this.transform.setsiblingindex(newdepth); } public override void setselectstate(bool iscenter) { if (image == null) image = getcomponent<image>(); image.color = iscenter ? color.white : color.gray; }} |
導入以上6個腳本以后，我們開始制作效果，先從ngui開始，我們先在場景中，隨便添加一個背景，然后，我們在uiroot下面添加一個空物體，取名scrollview，添加enhancescrollview.cs腳本，然后制作六個texture作為scrollview的子物體，添加dragenhanceview.cs腳本，nguienhanceitem.cs腳本，boxcollider組件。接著，我們在六個圖片下方添加兩個button，作為左右切換卡牌的按鈕，在點擊事件中，拖入scrollview，分別添加onbtnleftclick，onbtnrightclick方法。做完以上操作以后，場景大概是這樣：

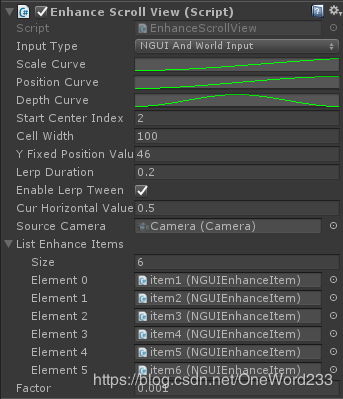

接著，我們選中scrollview,調整腳本參數：

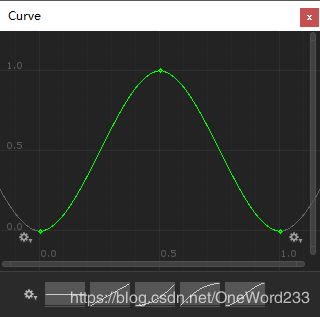

scalecurve圖像參數，設置為如下，左右循環都為pingpong:

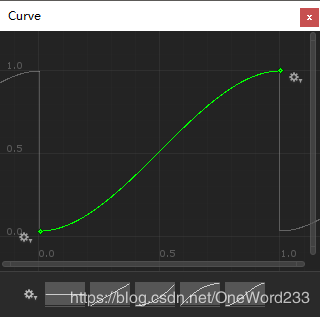

positioncurve圖像參數如下，左右循環都為loop：

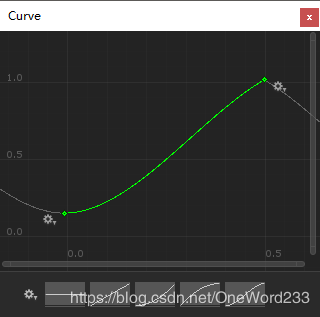

depthcurve圖像參數如下，左右循環都為loop：

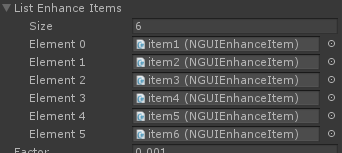

然后把scrollview的子物體都拖到listenhanceitems這個公開數組下：

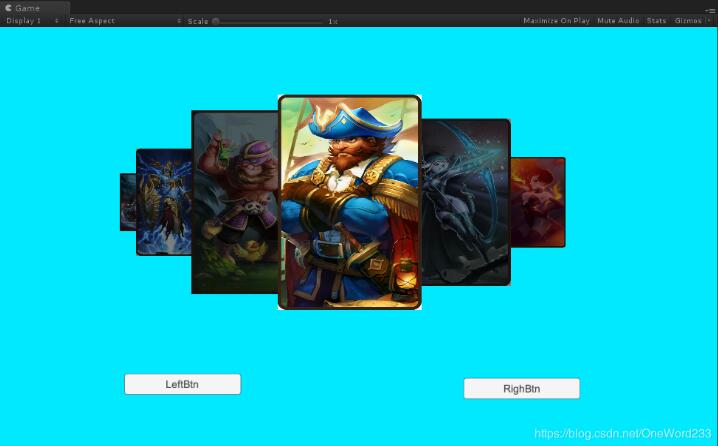

這樣，我們就把配置工作都做好了，運行游戲：
可以看到，效果還不錯，左右滑動或者點擊切換按鈕，就能實現切換卡牌的功能。

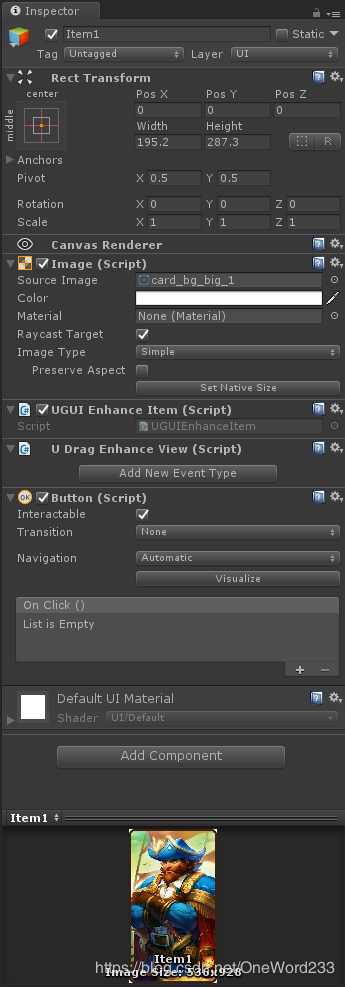

接著，我們看一下ugui的實現，ugui的ui布局基本和ngui保持一致，所不同的是scrollview的子物體添加的腳本不一樣，所需要的腳本及組件如下圖所示：
然后，還有需要注意的一點是，在scrollview上的參數配置上，我們需要把inputtype這個屬性調整為ugui input

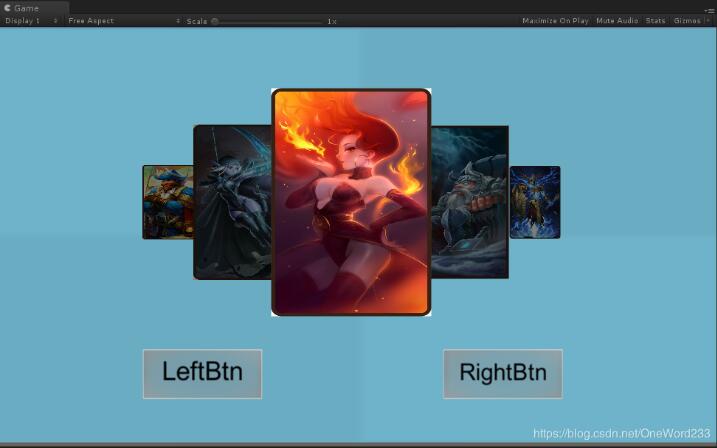

曲線設置和子物體數組設置和ngui一樣，這里就不再重復了，配置完這些操作以后，運行，ugui也能實現一樣的卡牌滾動效果：
以上，感謝github。
