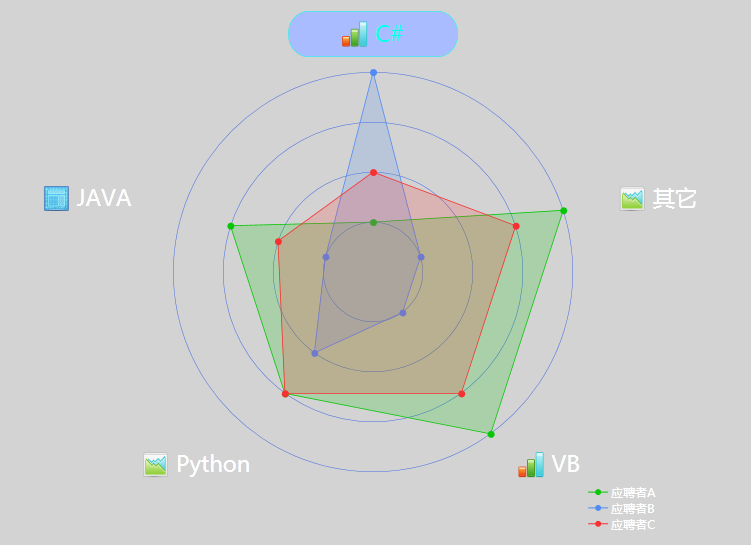

自定義雷達圖表如下：
1、創建UserControl,名為“RadarChartControl”
前臺：
|
1
2
3
4
5
6
7
8
9
10
|
<UserControl x:Class="WpfApplication2.RadarChartControl" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" mc:Ignorable="d" d:DesignHeight="300" d:DesignWidth="300" Loaded="RadarChartControl_OnLoaded"> <Canvas x:Name="CanvasPanel" HorizontalAlignment="Center" VerticalAlignment="Center"> </Canvas></UserControl> |
后臺：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
|
/// <summary> /// RadarChartControl.xaml 的交互邏輯 /// </summary> public partial class RadarChartControl : UserControl { public RadarChartControl() { InitializeComponent(); } #region 屬性 /// <summary> /// 尺寸大小 /// 高寬大小一樣 /// </summary> public double Size { get { return (double)GetValue(SizeProperty); } set { SetValue(SizeProperty, value); } } public static readonly DependencyProperty SizeProperty = DependencyProperty.Register("Size", typeof(double), typeof(RadarChartControl), new PropertyMetadata(400.0)); /// <summary> /// 標題 /// </summary> public List<ArgumentModel> Arguments { get { return (List<ArgumentModel>)GetValue(ArgumentsProperty); } set { SetValue(ArgumentsProperty, value); } } public static readonly DependencyProperty ArgumentsProperty = DependencyProperty.Register("Arguments", typeof(List<ArgumentModel>), typeof(RadarChartControl), new PropertyMetadata(new List<ArgumentModel>())); /// <summary> /// 數據 /// </summary> public List<ChartItem> Datas { get { return (List<ChartItem>)GetValue(DatasProperty); } set { SetValue(DatasProperty, value); } } public static readonly DependencyProperty DatasProperty = DependencyProperty.Register("Datas", typeof(List<ChartItem>), typeof(RadarChartControl), new PropertyMetadata(new List<ChartItem>())); /// <summary> /// 獲取或設置線條顏色 /// </summary> public Brush BorderBrush { get { return (Brush)GetValue(BorderBrushProperty); } set { SetValue(BorderBrushProperty, value); } } public static readonly DependencyProperty BorderBrushProperty = DependencyProperty.Register("BorderBrush", typeof(Brush), typeof(RadarChartControl), new PropertyMetadata(Brushes.RoyalBlue)); /// <summary> /// 連接點大小 /// </summary> public int EllipseSize = 7; /// <summary> /// 控件大小 /// </summary> public double TotalSize { get { double size = Size + 200; return size; } } /// <summary> /// 面板 /// </summary> public Canvas ChartCanvas = new Canvas(); //聲明和注冊路由事件 public static readonly RoutedEvent TitleClickRoutedEvent = EventManager.RegisterRoutedEvent("TitleClick", RoutingStrategy.Bubble, typeof(EventHandler<RoutedEventArgs>), typeof(RadarChartControl)); //CLR事件包裝 public event RoutedEventHandler TitleClick { add { this.AddHandler(TitleClickRoutedEvent, value); } remove { this.RemoveHandler(TitleClickRoutedEvent, value); } } //激發路由事件,借用Click事件的激發方法 protected void OnClick(object sender, RoutedEventArgs e) { RoutedEventArgs args = new RoutedEventArgs(TitleClickRoutedEvent, e); this.RaiseEvent(args); } #endregion private void RadarChartControl_OnLoaded(object sender, RoutedEventArgs e) { if (!CheckData()) { throw new Exception("RadarChart的數據之間不匹配!請重新配置!"); } //獲取最大數值 int maxData = Datas.Max(i => i.DataList.Max(o => o.Data)); //設置面板和背景 SetCanvasAndBackground(maxData); //設置數據標題 SetDataTitle(Datas); //獲取半圈大小 double length = Size / 2 / maxData; //連接點半徑 int ellipseR = EllipseSize / 2; foreach (var chartItem in Datas) { var color = chartItem.Color; //倆個多邊形,一個設置背景,一個設置邊框 Polygon polygonArea = new Polygon() { Fill = color, Opacity = 0.2, StrokeThickness = 0 }; Polygon polygonBorder = new Polygon() { Fill = Brushes.Transparent, Stroke = color, StrokeThickness = 0.8 }; int index = 0; foreach (var data in chartItem.DataList) { double currentAngle = Angle * index + 90; double angle = (currentAngle / 360) * 2 * Math.PI; var r = data.Data * length; double x = Size / 2 + r * Math.Cos(angle); double y = Size / 2 - r * Math.Sin(angle); //多邊形添加節點 var point = new Point() { X = x, Y = y }; polygonArea.Points.Add(point); polygonBorder.Points.Add(point); //設置節點Style var ellipse = new Ellipse() { Width = EllipseSize, Height = EllipseSize, Fill = color }; Canvas.SetLeft(ellipse, x - ellipseR); Canvas.SetTop(ellipse, y - ellipseR); ChartCanvas.Children.Add(ellipse); index++; } ChartCanvas.Children.Add(polygonArea); ChartCanvas.Children.Add(polygonBorder); } //設置標題 SetArguments(); } /// <summary> /// 設置數據標題 /// </summary> /// <param name="datas"></param> private void SetDataTitle(List<ChartItem> datas) { RadarChartTitleList titleList = new RadarChartTitleList(); titleList.ItemSoure = datas; double angle = Math.PI * 0.25; double x = TotalSize / 2 + (TotalSize / 2) * Math.Sin(angle); Canvas.SetLeft(titleList, x); Canvas.SetTop(titleList, x); CanvasPanel.Children.Add(titleList); } /// <summary> /// 設置標題 /// </summary> private void SetArguments() { int index = 0; foreach (var argument in Arguments) { var button = new ChartButton(); button.Content = argument.Name; button.Icon = argument.IconSource; button.MyButton.Click += OnClick; //繪制XY double currentAngle = Angle * index + 90; double angle = (currentAngle / 360) * 2 * Math.PI; var r = TotalSize / 2; double x = r + r * Math.Cos(angle) - (button.Width / 2); double y = r - r * Math.Sin(angle) - (button.Height / 2); //添加按鈕高度差異 y = y + Math.Sin(angle) * (button.Width / 2 - button.Height / 2); Canvas.SetLeft(button, x); Canvas.SetTop(button, y); CanvasPanel.Children.Add(button); index++; } } /// <summary> /// 檢查數據 /// </summary> /// <returns></returns> private bool CheckData() { if (Datas == null) { return false; } foreach (var data in Datas) { bool result = !Datas.Any(i => i.DataList.Count != data.DataList.Count); if (!result) { return false; } } return true; } /// <summary> /// 設置面板和背景 /// </summary> /// <param name="maxIndex"></param> private void SetCanvasAndBackground(int maxIndex) { CanvasPanel.Height = TotalSize; CanvasPanel.Width = TotalSize; //面板 ChartCanvas.Height = Size; ChartCanvas.Width = Size; double canvasX = (TotalSize - Size) / 2; Canvas.SetLeft(ChartCanvas, canvasX); Canvas.SetTop(ChartCanvas, canvasX); CanvasPanel.Children.Add(ChartCanvas); //畫圈和直線 var color = BorderBrush; double length = Size / 2 / maxIndex; for (int i = 0; i < maxIndex; i++) { double height = length * 2 * (i + 1); double left = Size / 2 - length * (i + 1); var ellipse = new Ellipse() { Stroke = color, StrokeThickness = 0.5, Height = height, Width = height }; Canvas.SetLeft(ellipse, left); Canvas.SetTop(ellipse, left); ChartCanvas.Children.Add(ellipse); } //暫時設定:4個標題時,畫線 if (Arguments.Count == 4) { //豎向直線 Path verticalPath = new Path() { Stroke = color, StrokeThickness = 0.2, }; //添加數據 StreamGeometry geometry = new StreamGeometry(); geometry.FillRule = FillRule.Nonzero; //聲前F0還是F1,現在是F1 using (StreamGeometryContext ctx = geometry.Open()) { ctx.BeginFigure(new Point(Size / 2, 0), true, true); ctx.LineTo(new Point(Size / 2, Size), true, false); } geometry.Freeze(); verticalPath.Data = geometry; ChartCanvas.Children.Add(verticalPath); //橫向直線 Path horizontalPath = new Path() { Stroke = color, StrokeThickness = 0.2, }; //添加數據 geometry = new StreamGeometry(); geometry.FillRule = FillRule.Nonzero; //聲前F0還是F1,現在是F1 using (StreamGeometryContext ctx = geometry.Open()) { ctx.BeginFigure(new Point(0, Size / 2), true, true); ctx.LineTo(new Point(Size, Size / 2), true, false); } geometry.Freeze(); horizontalPath.Data = geometry; ChartCanvas.Children.Add(horizontalPath); } } /// <summary> /// 分隔角度 /// </summary> private double Angle { get { int count = Arguments.Count; double angle = 360 / count; return angle; } } } /// <summary> /// 類標題 /// </summary> public class ArgumentModel { public ImageSource IconSource { get; set; } public string Name { get; set; } } /// <summary> /// 單組數據 /// </summary> public class ChartItem { public Brush Color { get; set; } List<ChartData> dataList = new List<ChartData>(); public List<ChartData> DataList { get { return dataList; } set { dataList = value; } } public object Name { get; set; } } /// <summary> /// 數據 /// </summary> public class ChartData { public string Name { get; set; } public int Data { get; set; } } |
2、創建標題類按鈕控件，定義名稱為ChartButton
前臺：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
|
<UserControl x:Class="WpfApplication2.ChartButton" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" mc:Ignorable="d" d:DesignHeight="80" d:DesignWidth="200" Loaded="ChartButton_OnLoaded"> <UserControl.Resources> <Style TargetType="Button"> <Setter Property="Foreground" Value="White"></Setter> </Style> </UserControl.Resources> <Grid> <Button x:Name="MyButton" VerticalAlignment="Center" HorizontalAlignment="Center"> <Button.Template> <ControlTemplate TargetType="{x:Type Button}"> <Grid x:Name="ButtonGrid" Height="{TemplateBinding Height}"> <Rectangle x:Name="ButtonRetc" RadiusX="20" RadiusY="25" Stroke="#FF06FFE8"></Rectangle> <StackPanel Orientation="Horizontal" Margin="20,5" HorizontalAlignment="Center"> <Rectangle Height="{Binding IconHeight}" Width="{Binding IconWidth}"> <Rectangle.Fill> <ImageBrush ImageSource="{Binding Icon}"></ImageBrush> </Rectangle.Fill> </Rectangle> <TextBlock x:Name="ButtonTextBlock" Text="{TemplateBinding Content}" Foreground="{TemplateBinding Foreground}" Margin="8,-2,0,0" FontSize="22" VerticalAlignment="Center" TextAlignment="Center"></TextBlock> </StackPanel> </Grid> <ControlTemplate.Triggers> <DataTrigger Binding="{Binding ElementName=MyButton,Path=IsFocused}" Value="True"> <DataTrigger.Setters> <Setter TargetName="ButtonRetc" Property="Fill" Value="#FFA9BCFF"></Setter> <Setter TargetName="ButtonRetc" Property="StrokeThickness" Value="0.5"></Setter> <Setter TargetName="ButtonTextBlock" Property="Foreground" Value="#FF06FFE8"></Setter> </DataTrigger.Setters> </DataTrigger> <DataTrigger Binding="{Binding ElementName=MyButton,Path=IsPressed}" Value="true"> <DataTrigger.Setters> <Setter TargetName="ButtonTextBlock" Property="FontWeight" Value="Bold"></Setter> </DataTrigger.Setters> </DataTrigger> <DataTrigger Binding="{Binding ElementName=MyButton,Path=IsFocused}" Value="false"> <DataTrigger.Setters> <Setter TargetName="ButtonRetc" Property="Fill" Value="Transparent"></Setter> <Setter TargetName="ButtonRetc" Property="StrokeThickness" Value="0"></Setter> </DataTrigger.Setters> </DataTrigger> </ControlTemplate.Triggers> </ControlTemplate> </Button.Template> </Button> </Grid></UserControl> |
后臺：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
|
/// <summary> /// ChartButton.xaml 的交互邏輯 /// </summary> public partial class ChartButton : UserControl { public ChartButton() { InitializeComponent(); } #region 屬性 /// <summary> /// 工具提示 /// </summary> public string ToolTip { get { return (string)GetValue(ToolTipProperty); } set { SetValue(ToolTipProperty, value); } } public static readonly DependencyProperty ToolTipProperty = DependencyProperty.Register("ToolTip", typeof(string), typeof(ChartButton), new PropertyMetadata()); /// <summary> /// 按鈕內容 /// </summary> public string Content { get { return (string)GetValue(ContentProperty); } set { SetValue(ContentProperty, value); } } public static readonly DependencyProperty ContentProperty = DependencyProperty.Register("Content", typeof(string), typeof(ChartButton), new PropertyMetadata("按鈕")); /// <summary> /// 圖標 /// </summary> public ImageSource Icon { get { return (ImageSource)GetValue(IconProperty); } set { SetValue(IconProperty, value); } } public static readonly DependencyProperty IconProperty = DependencyProperty.Register("Icon", typeof(ImageSource), typeof(ChartButton), new PropertyMetadata()); /// <summary> /// 圖標高度 /// </summary> public double IconHeight { get { return (double)GetValue(IconHeightProperty); } set { SetValue(IconHeightProperty, value); } } public static readonly DependencyProperty IconHeightProperty = DependencyProperty.Register("IconHeight", typeof(double), typeof(ChartButton), new PropertyMetadata(25.0)); /// <summary> /// 圖標寬度 /// </summary> public double IconWidth { get { return (double)GetValue(IconWidthProperty); } set { SetValue(IconWidthProperty, value); } } public static readonly DependencyProperty IconWidthProperty = DependencyProperty.Register("IconWidth", typeof(double), typeof(ChartButton), new PropertyMetadata(25.0)); /// <summary> /// 高度 /// </summary> public double Height { get { return (double)GetValue(HeightProperty); } set { SetValue(HeightProperty, value); } } public static readonly DependencyProperty HeightProperty = DependencyProperty.Register("Height", typeof(double), typeof(ChartButton), new PropertyMetadata(46.0)); /// <summary> /// 寬度 /// </summary> public double Width { get { return (double)GetValue(WidthProperty); } set { SetValue(WidthProperty, value); } } public static readonly DependencyProperty WidthProperty = DependencyProperty.Register("Width", typeof(double), typeof(ChartButton), new PropertyMetadata(170.0)); #endregion private void ChartButton_OnLoaded(object sender, RoutedEventArgs e) { MyButton.ToolTip = ToolTip; MyButton.Content = Content; MyButton.Width = Width; MyButton.Height = Height; if (Icon != null) { MyButton.DataContext = new ChartButtonModel() { Icon = Icon, IconHeight = IconHeight, IconWidth = IconWidth }; } } } public class ChartButtonModel { public ImageSource Icon { get; set; } public double IconHeight { get; set; } public double IconWidth { get; set; } } |
3、定義數據組標題顯示列表
前臺：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
|
<UserControl x:Class="WpfApplication2.RadarChartTitleList" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:mc="http://schemas.openxmlformats.org/markup-compatibility/2006" xmlns:d="http://schemas.microsoft.com/expression/blend/2008" mc:Ignorable="d" d:DesignHeight="300" d:DesignWidth="300" Loaded="RadarChartTitleList_OnLoaded"> <UserControl.Resources> <Style x:Key="ItemContainer" TargetType="{x:Type ListBoxItem}"> <Setter Property="Template"> <Setter.Value> <ControlTemplate TargetType="{x:Type ListBoxItem}"> <Border x:Name="IconBorder" Background="Transparent" CornerRadius="4" BorderThickness="0"> <ContentPresenter /> </Border> <ControlTemplate.Triggers> <Trigger Property="IsSelected" Value="true"> <Setter TargetName="IconBorder" Property="BitmapEffect"> <Setter.Value> <OuterGlowBitmapEffect GlowColor="Transparent" GlowSize="5" /> </Setter.Value> </Setter> </Trigger> </ControlTemplate.Triggers> </ControlTemplate> </Setter.Value> </Setter> </Style> </UserControl.Resources> <Grid> <ListBox x:Name="MyListBox" ItemsSource="{Binding}" ItemContainerStyle="{StaticResource ItemContainer}" FocusVisualStyle="{x:Null}"> <ListBox.Template> <ControlTemplate> <StackPanel Background="Transparent" IsItemsHost="True"></StackPanel> </ControlTemplate> </ListBox.Template> <ListBox.ItemTemplate> <DataTemplate> <Grid HorizontalAlignment="Left" VerticalAlignment="Center" Background="Transparent"> <Grid.ColumnDefinitions> <ColumnDefinition Width="Auto"></ColumnDefinition> <ColumnDefinition Width="*"></ColumnDefinition> </Grid.ColumnDefinitions> <Grid HorizontalAlignment="Center" Margin="10,0" Background="Transparent"> <Ellipse Fill="{Binding Color}" Height="6" Width="6" HorizontalAlignment="Right" VerticalAlignment="Center"></Ellipse> <Canvas VerticalAlignment="Center" HorizontalAlignment="Center"> <Path Fill="{Binding Color}" Height="5" StrokeThickness="1" Stroke="{Binding Color}" VerticalAlignment="Center" Data="M-10,0 L10,0"></Path> </Canvas> </Grid> <TextBlock Grid.Column="1" Text="{Binding Name}" Foreground="White" Background="Transparent"></TextBlock> </Grid> </DataTemplate> </ListBox.ItemTemplate> </ListBox> </Grid></UserControl> |
后臺：
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
|
/// <summary> /// RadarChartTitleList.xaml 的交互邏輯 /// </summary> public partial class RadarChartTitleList : UserControl { public RadarChartTitleList() { InitializeComponent(); } /// <summary> /// 數據 /// </summary> public List<ChartItem> ItemSoure { get { return (List<ChartItem>)GetValue(ItemSoureProperty); } set { SetValue(ItemSoureProperty, value); } } public static readonly DependencyProperty ItemSoureProperty = DependencyProperty.Register("ItemSoure", typeof(List<ChartItem>), typeof(RadarChartControl), new PropertyMetadata(new List<ChartItem>())); private void RadarChartTitleList_OnLoaded(object sender, RoutedEventArgs e) { this.DataContext = ItemSoure; } } |
4、界面引用控件
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
|
<Window x:Class="WpfApplication2.MainWindow" xmlns="http://schemas.microsoft.com/winfx/2006/xaml/presentation" xmlns:x="http://schemas.microsoft.com/winfx/2006/xaml" xmlns:wpfApplication2="clr-namespace:WpfApplication2" Title="MainWindow" Height="350" Width="525" Background="LightGray"> <Grid> <wpfApplication2:RadarChartControl x:Name="RadarChartControl" HorizontalAlignment="Center" VerticalAlignment="Center"> <wpfApplication2:RadarChartControl.Arguments> <wpfApplication2:ArgumentModel Name="C#" IconSource="Chart_Bar_Big.png"></wpfApplication2:ArgumentModel> <wpfApplication2:ArgumentModel Name="JAVA" IconSource="Blueprint_Blog.png"></wpfApplication2:ArgumentModel> <wpfApplication2:ArgumentModel Name="Python" IconSource="Chart_Graph_Descending.png"></wpfApplication2:ArgumentModel> <wpfApplication2:ArgumentModel Name="VB" IconSource="Chart_Bar_Big.png"></wpfApplication2:ArgumentModel> <wpfApplication2:ArgumentModel Name="其它" IconSource="Chart_Graph_Descending.png"></wpfApplication2:ArgumentModel> </wpfApplication2:RadarChartControl.Arguments> <wpfApplication2:RadarChartControl.Datas> <wpfApplication2:ChartItem Name="應聘者A" Color="#FF07C507"> <wpfApplication2:ChartItem.DataList> <wpfApplication2:ChartData Data="1"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="3"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="3"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="4"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="4"></wpfApplication2:ChartData> </wpfApplication2:ChartItem.DataList> </wpfApplication2:ChartItem> <wpfApplication2:ChartItem Name="應聘者B" Color="#FF508BF3"> <wpfApplication2:ChartItem.DataList> <wpfApplication2:ChartData Data="4"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="1"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="2"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="1"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="1"></wpfApplication2:ChartData> </wpfApplication2:ChartItem.DataList> </wpfApplication2:ChartItem> <wpfApplication2:ChartItem Name="應聘者C" Color="#FFF73131"> <wpfApplication2:ChartItem.DataList> <wpfApplication2:ChartData Data="2"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="2"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="3"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="3"></wpfApplication2:ChartData> <wpfApplication2:ChartData Data="3"></wpfApplication2:ChartData> </wpfApplication2:ChartItem.DataList> </wpfApplication2:ChartItem> </wpfApplication2:RadarChartControl.Datas> </wpfApplication2:RadarChartControl> </Grid></Window> |
以上所述是小編給大家介紹的WPF 自定義雷達圖開發實例教程，希望對大家有所幫助，如果大家有任何疑問歡迎給我留言，小編會及時回復大家的，在此也非常感謝大家對服務器之家網站的支持！
原文鏈接：http://www.cnblogs.com/kybs0/archive/2016/09/03/5788771.html
