這幾天研究了下模糊特效，看了很多文章，其原理就是拿取圖片或屏幕數據，然后將周圍的元素和目標位置的顏色值進行一個融合計算，然后自己寫了一個小小的測試程序。
這個模糊也可以分成兩種，一個是自身模糊，一個是從屏幕上取值進行模糊。第一個用于一些小的列表展示，比如未解鎖時，是模糊的。第二個是凸顯彈框效果的，將背景都模糊掉，自己將這個稍微加強了些可以指定模糊一個位置。
針對移動平臺，使用高斯模糊，其實效率不是很高，如果要很好的效果，那么速度卡；如果要速度快，那么效果達不到要求。但是還是在這里記錄下，興許以后能用上。
先說第一個，掛在image下的模糊特效。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
|
shader "custom/frontblur" { properties { [perrendererdata] _maintex ("sprite texture", 2d) = "white" {} _color ("tint", color) = (1,1,1,1) [hideininspector]_stencilcomp ("stencil comparison", float) = 8 [hideininspector]_stencil ("stencil id", float) = 0 [hideininspector]_stencilop ("stencil operation", float) = 0 [hideininspector]_stencilwritemask ("stencil write mask", float) = 255 [hideininspector]_stencilreadmask ("stencil read mask", float) = 255 [hideininspector]_colormask ("color mask", float) = 15 [toggle(unity_ui_alphaclip)] _useuialphaclip ("use alpha clip", float) = 0 _size ("size", range(0, 50)) = 5 } subshader { tags { "queue"="transparent" "ignoreprojector"="true" "rendertype"="transparent" "previewtype"="plane" "canusespriteatlas"="true" } stencil { ref [_stencil] comp [_stencilcomp] pass [_stencilop] readmask [_stencilreadmask] writemask [_stencilwritemask] } cull off lighting off zwrite off ztest [unity_guiztestmode] blend srcalpha oneminussrcalpha colormask [_colormask] pass { name "frontblurhor" cgprogram #pragma vertex vert #pragma fragment frag #pragma target 2.0 #include "unitycg.cginc" #include "unityui.cginc" #pragma multi_compile __ unity_ui_alphaclip struct appdata_t { float4 vertex : position; float4 color : color; float2 texcoord : texcoord0; unity_vertex_input_instance_id }; struct v2f { float4 vertex : sv_position; fixed4 color : color; float2 texcoord : texcoord0; float4 worldposition : texcoord1; unity_vertex_output_stereo }; fixed4 _color; fixed4 _texturesampleadd; float4 _cliprect; v2f vert(appdata_t in) { v2f out; unity_setup_instance_id(in); unity_initialize_vertex_output_stereo(out); out.worldposition = in.vertex; out.vertex = unityobjecttoclippos(out.worldposition); out.texcoord = in.texcoord; out.color = in.color * _color; return out; } sampler2d _maintex; float4 _maintex_texelsize; float _size; half4 grabpixel(v2f i, float weight, float kernelx){ if (_size <= 1 || weight == 0){ return tex2d(_maintex, half2(i.texcoord.x + _maintex_texelsize.x*kernelx*_size, i.texcoord.y)) * weight; }else{ half4 sum = half4(0,0,0,0); sum += tex2d(_maintex, half2(i.texcoord.x + _maintex_texelsize.x*kernelx*_size*0.2, i.texcoord.y))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x + _maintex_texelsize.x*kernelx*_size*0.4, i.texcoord.y))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x + _maintex_texelsize.x*kernelx*_size*0.6, i.texcoord.y))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x + _maintex_texelsize.x*kernelx*_size*0.8, i.texcoord.y))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x + _maintex_texelsize.x*kernelx*_size*1.0, i.texcoord.y))*0.2; return (sum + _texturesampleadd) * weight; } } half4 grabpixely(v2f i, float weight, float kernely){ if (_size <= 1 || weight == 0){ return tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size)) * weight; }else{ half4 sum = half4(0,0,0,0); sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.2))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.4))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.6))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.8))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*1.0))*0.2; return (sum + _texturesampleadd) * weight; } } fixed4 frag(v2f in) : sv_target { half4 sum = half4(0,0,0,0); // #define grabpixel(weight, kernelx) (tex2d(_maintex, half2(in.texcoord.x + _maintex_texelsize.x * kernelx*_size, in.texcoord.y)) + _texturesampleadd) * weight // sum += grabpixel(in, 0.05, -4.0); // sum += grabpixel(in, 0.09, -3.0); // sum += grabpixel(in, 0.12, -2.0); // sum += grabpixel(in, 0.15, -1.0); // sum += grabpixel(in, 0.18, 0.0); // sum += grabpixel(in, 0.15, +1.0); // sum += grabpixel(in, 0.12, +2.0); // sum += grabpixel(in, 0.09, +3.0); // sum += grabpixel(in, 0.05, +4.0); for(int i=0;i<9;i++){ sum += grabpixel(in, 1.0/9, i-4.0); } // half4 sumy = half4(0,0,0,0); // for(int i=0;i<15;i++){ // sumy += grabpixely(in, 1.0/15, i-7.0); // } // half4 sum = (sumx + sumy) * 0.5; // sum += grabpixel(in, 0.01, -9.0); // sum += grabpixel(in, 0.02, -8.0); // sum += grabpixel(in, 0.03, -7.0); // sum += grabpixel(in, 0.04, -6.0); // sum += grabpixel(in, 0.05, -5.0); // sum += grabpixel(in, 0.06, -4.0); // sum += grabpixel(in, 0.07, -3.0); // sum += grabpixel(in, 0.08, -2.0); // sum += grabpixel(in, 0.09, -1.0); // sum += grabpixel(in, 0.10, 0.0); // sum += grabpixel(in, 0.09, +1.0); // sum += grabpixel(in, 0.08, +2.0); // sum += grabpixel(in, 0.07, +3.0); // sum += grabpixel(in, 0.06, +4.0); // sum += grabpixel(in, 0.05, +5.0); // sum += grabpixel(in, 0.04, +6.0); // sum += grabpixel(in, 0.03, +7.0); // sum += grabpixel(in, 0.02, +8.0); // sum += grabpixel(in, 0.01, +9.0); sum = sum * in.color; sum.a *= unityget2dclipping(in.worldposition.xy, _cliprect); #ifdef unity_ui_alphaclip clip (sum.a - 0.001); #endif return sum; // float distance = _distance; // fixed4 color = (tex2d(_maintex, in.texcoord) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x + distance, in.texcoord.y + distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x + distance, in.texcoord.y)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x + distance, in.texcoord.y - distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x, in.texcoord.y - distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x - distance, in.texcoord.y - distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x - distance, in.texcoord.y)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x - distance, in.texcoord.y + distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x, in.texcoord.y + distance)) + _texturesampleadd) * in.color; // color /= 9; // color.a *= unityget2dclipping(in.worldposition.xy, _cliprect); // #ifdef unity_ui_alphaclip // clip (color.a - 0.001); // #endif // return color; } endcg } pass { name "frontblurver" cgprogram #pragma vertex vert #pragma fragment frag #pragma target 2.0 #include "unitycg.cginc" #include "unityui.cginc" #pragma multi_compile __ unity_ui_alphaclip struct appdata_t { float4 vertex : position; float4 color : color; float2 texcoord : texcoord0; unity_vertex_input_instance_id }; struct v2f { float4 vertex : sv_position; fixed4 color : color; float2 texcoord : texcoord0; float4 worldposition : texcoord1; unity_vertex_output_stereo }; fixed4 _color; fixed4 _texturesampleadd; float4 _cliprect; v2f vert(appdata_t in) { v2f out; unity_setup_instance_id(in); unity_initialize_vertex_output_stereo(out); out.worldposition = in.vertex; out.vertex = unityobjecttoclippos(out.worldposition); out.texcoord = in.texcoord; out.color = in.color * _color; return out; } sampler2d _maintex; float4 _maintex_texelsize; float _size; half4 grabpixel(v2f i, float weight, float kernely){ if (_size <= 1 || weight == 0){ return tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size)) * weight; }else{ half4 sum = half4(0,0,0,0); sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.2))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.4))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.6))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*0.8))*0.2; sum += tex2d(_maintex, half2(i.texcoord.x, i.texcoord.y + _maintex_texelsize.y*kernely*_size*1.0))*0.2; return (sum + _texturesampleadd) * weight; } } fixed4 frag(v2f in) : sv_target { half4 sum = half4(0,0,0,0); // #define grabpixel(weight, kernely) (tex2d(_maintex, half2(in.texcoord.x, in.texcoord.y + _maintex_texelsize.y * kernely*_size)) + _texturesampleadd) * weight // sum += grabpixel(in, 0.05, -4.0); // sum += grabpixel(in, 0.09, -3.0); // sum += grabpixel(in, 0.12, -2.0); // sum += grabpixel(in, 0.15, -1.0); // sum += grabpixel(in, 0.18, 0.0); // sum += grabpixel(in, 0.15, +1.0); // sum += grabpixel(in, 0.12, +2.0); // sum += grabpixel(in, 0.09, +3.0); // sum += grabpixel(in, 0.05, +4.0); for(int i=0;i<9;i++){ sum += grabpixel(in, 1.0/9, i-4.0); } // sum += grabpixel(in, 0.01, -9.0); // sum += grabpixel(in, 0.02, -8.0); // sum += grabpixel(in, 0.03, -7.0); // sum += grabpixel(in, 0.04, -6.0); // sum += grabpixel(in, 0.05, -5.0); // sum += grabpixel(in, 0.06, -4.0); // sum += grabpixel(in, 0.07, -3.0); // sum += grabpixel(in, 0.08, -2.0); // sum += grabpixel(in, 0.09, -1.0); // sum += grabpixel(in, 0.10, 0.0); // sum += grabpixel(in, 0.09, +1.0); // sum += grabpixel(in, 0.08, +2.0); // sum += grabpixel(in, 0.07, +3.0); // sum += grabpixel(in, 0.06, +4.0); // sum += grabpixel(in, 0.05, +5.0); // sum += grabpixel(in, 0.04, +6.0); // sum += grabpixel(in, 0.03, +7.0); // sum += grabpixel(in, 0.02, +8.0); // sum += grabpixel(in, 0.01, +9.0); sum = sum * in.color; sum.a *= unityget2dclipping(in.worldposition.xy, _cliprect); #ifdef unity_ui_alphaclip clip (sum.a - 0.001); #endif return sum; // float distance = _distance; // fixed4 color = (tex2d(_maintex, in.texcoord) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x + distance, in.texcoord.y + distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x + distance, in.texcoord.y)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x + distance, in.texcoord.y - distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x, in.texcoord.y - distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x - distance, in.texcoord.y - distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x - distance, in.texcoord.y)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x - distance, in.texcoord.y + distance)) + _texturesampleadd) * in.color; // color += (tex2d(_maintex, half2(in.texcoord.x, in.texcoord.y + distance)) + _texturesampleadd) * in.color; // color /= 9; // color.a *= unityget2dclipping(in.worldposition.xy, _cliprect); // #ifdef unity_ui_alphaclip // clip (color.a - 0.001); // #endif // return color; } endcg } }} |
里面分了兩個pass來計算，這樣算出的效果會好很多，然后里面試了跟多的計算，越多的分層，那么得到的效果也越高，也意味著更加的不流暢。將shader放到一個新建的材質球上，然后把材質拖到image組件的material屬性欄上就可以了。

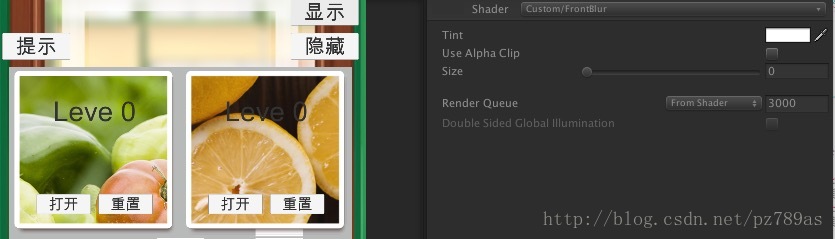

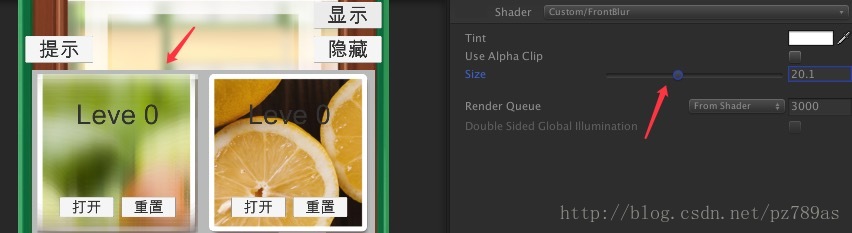

看看效果：
然后說第二個方式，它是將背景都給模糊的效果。
|
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
|
shader "custom/backblur"{ properties { [perrendererdata] _maintex ("sprite texture", 2d) = "white" {} _color ("main color", color) = (1,1,1,1) _size ("size", range(0, 20)) = 1 } category { // we must be transparent, so other objects are drawn before this one. tags { "queue"="transparent" "ignoreprojector"="true" "rendertype"="transparent" "previewtype" = "plane" "canusespriteatlas" = "true" } subshader { // horizontal blur grabpass { tags { "lightmode" = "always" } } pass { tags { "lightmode" = "always" } name "backblurhor" cgprogram #pragma vertex vert #pragma fragment frag #pragma fragmentoption arb_precision_hint_fastest #include "unitycg.cginc" struct appdata_t { float4 vertex : position; float2 texcoord : texcoord0; float4 color : color; }; struct v2f { float4 vertex : position; float4 uvgrab : texcoord0; float4 color : color; }; v2f vert (appdata_t v) { v2f o; o.vertex = unityobjecttoclippos(v.vertex); #if unity_uv_starts_at_top float scale = -1.0; #else float scale = 1.0; #endif o.uvgrab.xy = (float2(o.vertex.x, o.vertex.y*scale) + o.vertex.w) * 0.5; o.uvgrab.zw = o.vertex.zw; o.color = v.color; return o; } sampler2d _grabtexture; float4 _grabtexture_texelsize; float4 _maintex_texelsize; float _size; uniform float4 _color; // static float gaussiankernel[9] = { // 0.05, 0.09, 0.12, // 0.15, 0.18, 0.15, // 0.12, 0.09, 0.05 // }; // static float gaussiankernel[19] = { // 0.01, 0.02, 0.03, 0.04, 0.05, 0.06, 0.07, 0.08, 0.09, // 0.1, // 0.09, 0.08, 0.07, 0.06, 0.05, 0.04, 0.03, 0.02, 0.01, // }; // static float gaussiankerneld[19] = { // -9.0, -8.0, -7.0, -6.0, -5.0, -4.0, -3.0, -2.0, -1.0, // 0.0, // +1.0, +2.0, +3.0, +4.0, +5.0, +6.0, +7.0, +8.0, +9.0, // }; half4 grabpixel(v2f i, float weight, float kernelx){ if (i.uvgrab.x == 0 && i.uvgrab.y == 0){ kernelx = 0; } return tex2dproj(_grabtexture, unity_proj_coord(float4(i.uvgrab.x + _grabtexture_texelsize.x*kernelx*_size, i.uvgrab.y, i.uvgrab.z, i.uvgrab.w))) * weight; } half4 frag( v2f i ) : color { half4 sum = half4(0,0,0,0); // #define grabpixel(weight, kernelx) tex2dproj(_grabtexture, unity_proj_coord(float4(i.uvgrab.x + _grabtexture_texelsize.x * kernelx*_size, i.uvgrab.y, i.uvgrab.z, i.uvgrab.w))) * weight sum += grabpixel(i, 0.05, -4.0); sum += grabpixel(i, 0.09, -3.0); sum += grabpixel(i, 0.12, -2.0); sum += grabpixel(i, 0.15, -1.0); sum += grabpixel(i, 0.18, 0.0); sum += grabpixel(i, 0.15, +1.0); sum += grabpixel(i, 0.12, +2.0); sum += grabpixel(i, 0.09, +3.0); sum += grabpixel(i, 0.05, +4.0); // sum += grabpixel(i, 0.01, -9.0); // sum += grabpixel(i, 0.02, -8.0); // sum += grabpixel(i, 0.03, -7.0); // sum += grabpixel(i, 0.04, -6.0); // sum += grabpixel(i, 0.05, -5.0); // sum += grabpixel(i, 0.06, -4.0); // sum += grabpixel(i, 0.07, -3.0); // sum += grabpixel(i, 0.08, -2.0); // sum += grabpixel(i, 0.09, -1.0); // sum += grabpixel(i, 0.10, 0.0); // sum += grabpixel(i, 0.09, +1.0); // sum += grabpixel(i, 0.08, +2.0); // sum += grabpixel(i, 0.07, +3.0); // sum += grabpixel(i, 0.06, +4.0); // sum += grabpixel(i, 0.05, +5.0); // sum += grabpixel(i, 0.04, +6.0); // sum += grabpixel(i, 0.03, +7.0); // sum += grabpixel(i, 0.02, +8.0); // sum += grabpixel(i, 0.01, +9.0); float4 col5 = tex2dproj(_grabtexture, unity_proj_coord(i.uvgrab)); float decayfactor = 1.0f; if (i.uvgrab.x == 0 && i.uvgrab.y == 0){ decayfactor = 0; } sum = lerp(col5, sum, decayfactor) * i.color * _color; return sum; } endcg } // vertical blur grabpass { tags { "lightmode" = "always" } } pass { tags { "lightmode" = "always" } name "backblurver" cgprogram #pragma vertex vert #pragma fragment frag #pragma fragmentoption arb_precision_hint_fastest #include "unitycg.cginc" struct appdata_t { float4 vertex : position; float2 texcoord: texcoord0; float4 color : color; }; struct v2f { float4 vertex : position; float4 uvgrab : texcoord0; float4 color : color; }; v2f vert (appdata_t v) { v2f o; o.vertex = unityobjecttoclippos(v.vertex); #if unity_uv_starts_at_top float scale = -1.0; #else float scale = 1.0; #endif o.uvgrab.xy = (float2(o.vertex.x, o.vertex.y*scale) + o.vertex.w) * 0.5; o.uvgrab.zw = o.vertex.zw; o.color = v.color; return o; } sampler2d _grabtexture; float4 _grabtexture_texelsize; float _size; uniform float4 _color; half4 grabpixel(v2f i, float weight, float kernely){ if (i.uvgrab.x == 0 && i.uvgrab.y == 0){ kernely = 0; } return tex2dproj( _grabtexture, unity_proj_coord(float4(i.uvgrab.x, i.uvgrab.y + _grabtexture_texelsize.y*kernely*_size, i.uvgrab.z, i.uvgrab.w))) * weight; } half4 frag( v2f i ) : color { half4 sum = half4(0,0,0,0); // #define grabpixel(weight,kernely) tex2dproj( _grabtexture, unity_proj_coord(float4(i.uvgrab.x, i.uvgrab.y + _grabtexture_texelsize.y * kernely*_size, i.uvgrab.z, i.uvgrab.w))) * weight sum += grabpixel(i, 0.05, -4.0); sum += grabpixel(i, 0.09, -3.0); sum += grabpixel(i, 0.12, -2.0); sum += grabpixel(i, 0.15, -1.0); sum += grabpixel(i, 0.18, 0.0); sum += grabpixel(i, 0.15, +1.0); sum += grabpixel(i, 0.12, +2.0); sum += grabpixel(i, 0.09, +3.0); sum += grabpixel(i, 0.05, +4.0); // sum += grabpixel(i, 0.01, -9.0); // sum += grabpixel(i, 0.02, -8.0); // sum += grabpixel(i, 0.03, -7.0); // sum += grabpixel(i, 0.04, -6.0); // sum += grabpixel(i, 0.05, -5.0); // sum += grabpixel(i, 0.06, -4.0); // sum += grabpixel(i, 0.07, -3.0); // sum += grabpixel(i, 0.08, -2.0); // sum += grabpixel(i, 0.09, -1.0); // sum += grabpixel(i, 0.10, 0.0); // sum += grabpixel(i, 0.09, +1.0); // sum += grabpixel(i, 0.08, +2.0); // sum += grabpixel(i, 0.07, +3.0); // sum += grabpixel(i, 0.06, +4.0); // sum += grabpixel(i, 0.05, +5.0); // sum += grabpixel(i, 0.04, +6.0); // sum += grabpixel(i, 0.03, +7.0); // sum += grabpixel(i, 0.02, +8.0); // sum += grabpixel(i, 0.01, +9.0); float4 col5 = tex2dproj(_grabtexture, unity_proj_coord(i.uvgrab)); float decayfactor = 1.0f; if (i.uvgrab.x == 0 && i.uvgrab.y == 0){ decayfactor = 0; } sum = lerp(col5, sum, decayfactor) * i.color * _color; return sum; } endcg } } } } |
計算是一樣的，不過這個相對來說要慢，畢竟是將整個屏幕那來計算的，肯定會慢很多。用法也一樣，shader放到一個新建的材質球上，然后將材質球拖到一個image組件的material屬性欄中即可，這里你可以調整image的寬高，這樣可以指定模糊那一塊區域了。

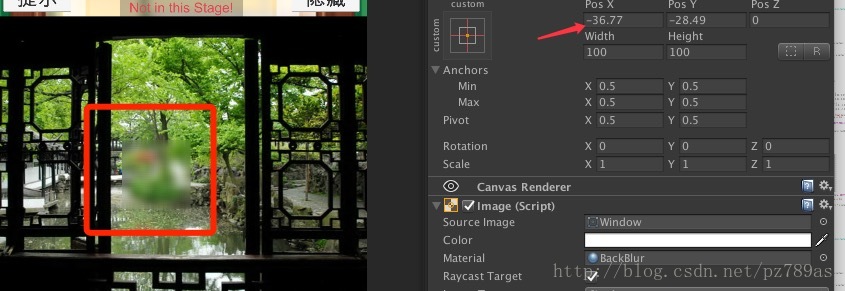

看效果：

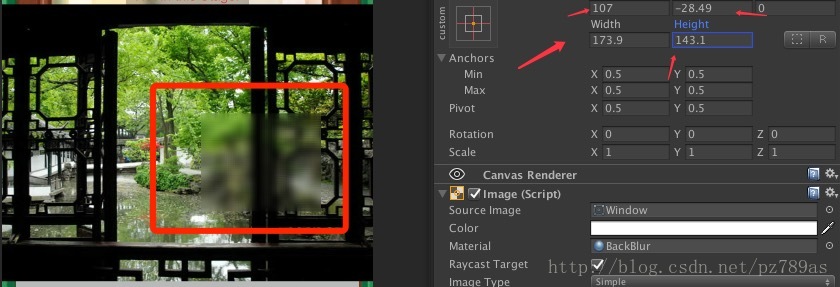

然后我移動和調整寬高之后：

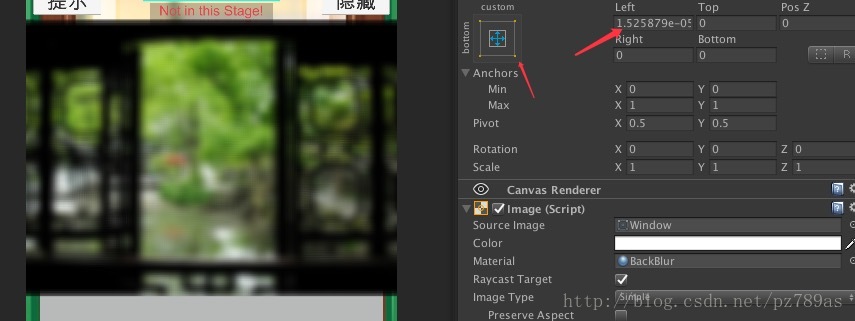

當然也可以調成整屏模糊：
以上就是本文的全部?jī)?nèi)容，希望對大家的學習有所幫助，也希望大家多多支持服務器之家。
